4Kg Auto Changeover Regulator c/w Pigtails with OPP & EFV Type 738

DESCRIPTION:

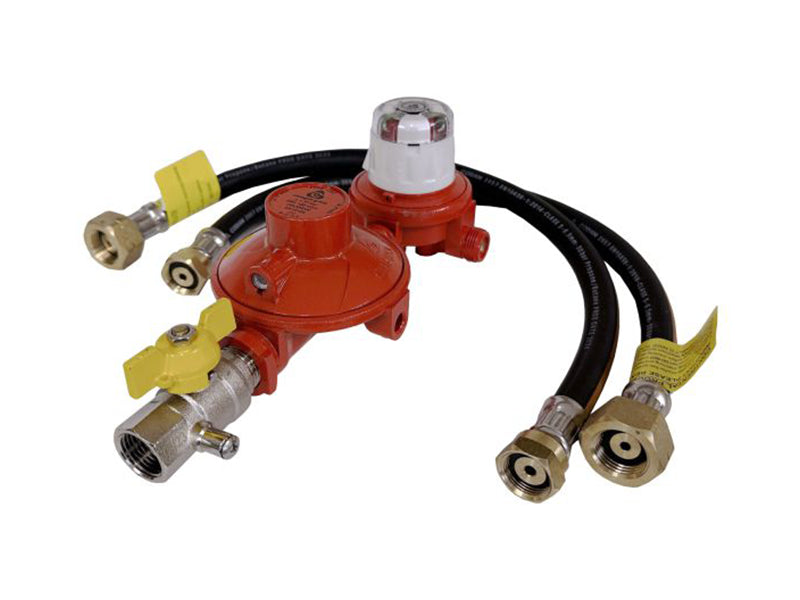

Premium Automatic Propane Change over Regulator Kit with both excess flow and over pressure protection (100mbar) which has automatic reset. This Kit comprises of a 4kg/hr 37mbar Regulator, two 500mm Cylinder Hoses to suit Irish propane Cylinders, a Manual Isolation Ball Valve with a test point and a 1/2" Female outlet and Mounting Bracket. When the pressure drops in the supply cylinder, the Regulator automatically changes to the reserve cylinder without interruption to the gas supply. The indicator window turns red when the system has changed over, the Knob on the front of the regulator should then be pointed to the opposite cylinder, the indicator will then turn green.

SPECIFICATIONS:

- Capacity 4kg/h (2.16m3/h)

- Operating Pressure 37mb

- Pressure Relief Valve (PRV) setting 100mb

- Features OPP & EFV

- Outlet Connection 1/2" BSP Female Test Point

- Manufactured in accordance with EN 16129:2013

- Maximum Inlet Pressure 16 bar.
