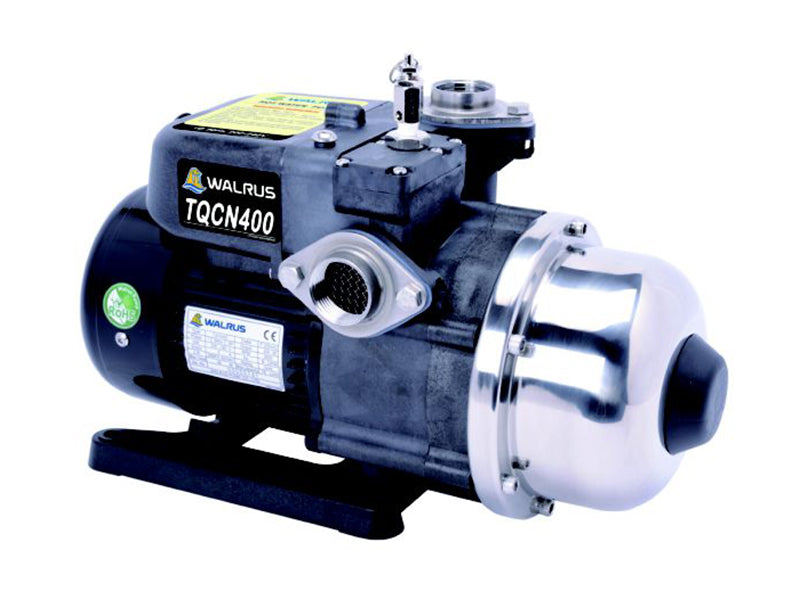

Walrus Electronic Booster Pump Systems for Hot Water

DESCRIPTION:

This HQCN Pump is designed for hot water supply (up to +90°C) and pressure boosting in residential and commercial applications. it is suitable for solar energy hot water system or other types of hot water systems and can produce a maximum pressure of 2.5 bar.

The motor has built-in thermal overload to protect against high operating temperatures and over current.  The HQCN has an anti-cycling feature which prevents the pump from continuous starting and stopping when you have a dripping tap or minor leak in the system. Relief valve will automatically release the pressure when the HQCN full system pressure exceeds 5kg/cm².

SPECIFICATIONS:

- The HQCN is a complete, all-in-one unit, consisting of pump, motor, pressure tank, and electronic controller

- The built-in electronic controller provides constant pressure which ensures that the pump starts automatically when water is consumed and operates continuously until water is not required

- Compact design and quiet operation make the HQCN series suitable for many applications

- The HQCN is constructed from the top quality corrosion resistant materials

- Ambient temperature: Max. +40°C

- Liquid temperature: +4°C ~ +90°C

- System Pressure : Max. 5 kg/cm²

- Relative humidity: Max. 85% (RH).
