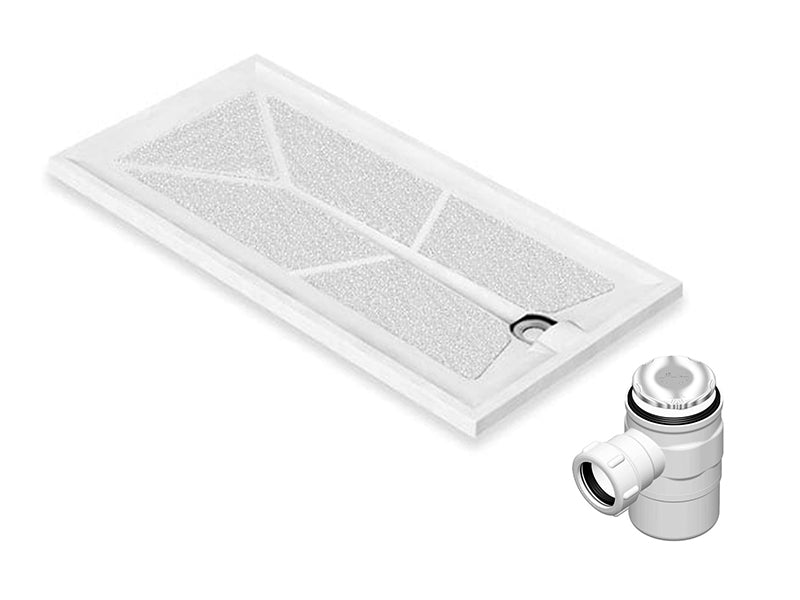

Braddan Low Level Step In Shower Trays c/w Gravity Waste

Size	SKU	Barcode
900 x 900mm	B9090GW	5055295106277
1000 x 1000mm	B100100GW	5055295105508
1000 x 700mm	B10070GW	5055295104907
1000 x 800mm	B10080GW	5055295143524
1200 x 820mm	B12082GW	5055295110052
1300 x 700mm	B13070GW	5055295110014
1420 x 820mm	B14282GW	5055295105669
1500 x 700mm	B15070GW	5055295106239
1700 x 700mm	B17070GW	5055295110038
1800 x 700mm	B18070GW	5055295109995
1800 x 820mm	B18082GW	5055295105683

DESCRIPTION:

The Braddan’s unique design can create a full level-access (except on a concrete floor) surface-mounted or step-in shower enclosure suitable for all floor types.

SPECIFICATIONS:

- No under-tray foaming is required

- Made from GRP (glass reinforced plastic) with a slip-resistant textured surface for added safety

- Integral added strength for extra peace of mind

- A central waste position at the end of the tray

- Excellent drainage achieved with 35mm fall inside the tray

- Factory tted upward pumped waste option is designed for non-gravity waste water installations

- Suitable for both corner entry and alcove applications

- Trim to length kit supplied with 1800mm trays (can be trimmed to 1500mm)

- All trays are supplied with 3 tiling upstands ensuring a watertight seal

- Weight Limit: 190Kg / 30 Stone.
