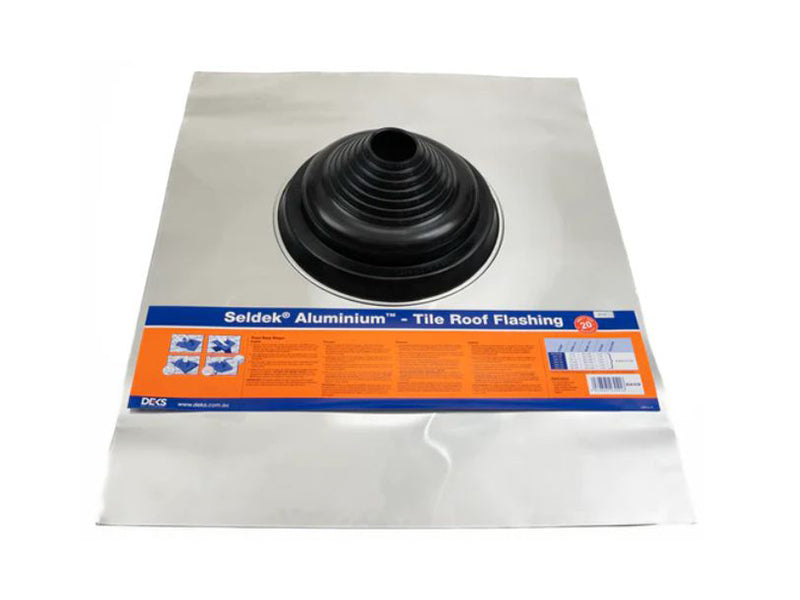

Seldek Flashings for Tile and Slate Roofs
| Temp. | External Pipe Dia. | Base Size | SKU | Barcode | Price |
|---|---|---|---|
| 150°C | 12 - 70mm (1/2"-2 1/2") | 500 x 600 | SDA100 | 9316867008259 | |
| 150°C | 25 - 170mm (1 1/2"-6") | 500 x 600 | SDA101 | 5030895230416 | |
| 150°C | 110 - 200mm (4 1/2"-8") | 600 x 600 | SDA102 | 9316867006477 | |
| 150°C | 160 - 300mm (5 1/2"-12") | 764 x 764 | SDA103 | 9316867006071 | |
| 150°C | 300 - 450mm (12"-18") | 956 x 956 | SDA104 | 5014597895586 | |
| 250°C | 110 - 200mm (4 1/2"-8") | 600 x 600 | SDA202 | 9316867053228 | |
| 250°C | 160 - 300mm (5 1/2"-12") | 764 x 764 | SDA203 | 9316867053235 |
DESCRIPTION:
Seldek Flashings will waterproof any circular flue or chimney with external diameters up to 18" (450mm), as it penetrates a tiled or slated roof line.
The EPDM cone, which is trimmed on site to fit the external diameter of the chimney, is ingeniously locked to a high grade and malleable 99.9% pure aluminium base sheet. The Cone has been proven to withstand intermittent temperatures of up to 150°C.
The silicone version can withstand intermittent temperatures of up to 250°C.
Features a revolutionary non-absorbent and non-porous sponge gasket that seals by compression, even in wet conditions; it hugs the roof line to provide a watertight seal without the need for silicone sealants.
SPECIFICATIONS:
- Can accommodate any circular flue or chimney with external diameters up to 18"(450mm)
- Roof Angle 0 to 45°
- The Cone has been proven to withstand intermittent temperatures of up to 150° C.
- The silicone version (SDA202 & SDA203) can withstand intermittent temperatures of up to 250°C.
