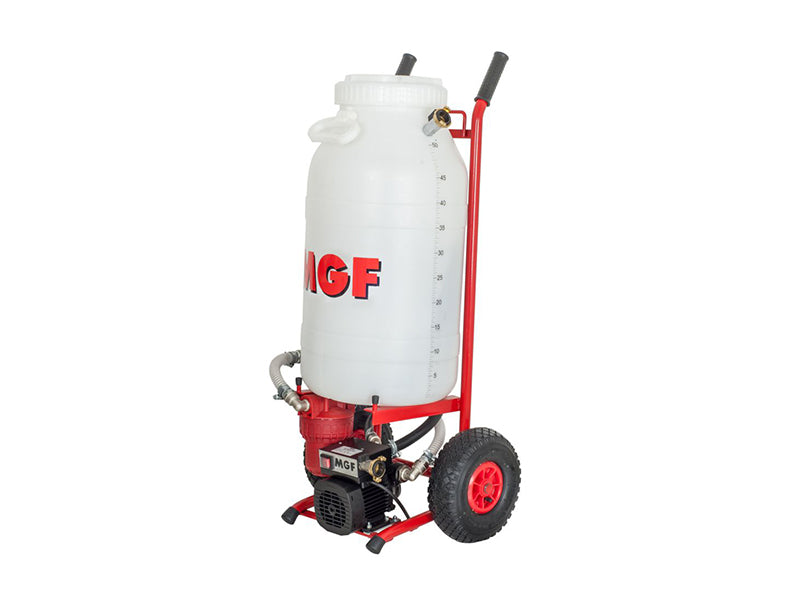

Multifunction Flushing and Filling Machine

DESCRIPTION:

1. CAD engineered frame with FEM method (Finite Element Method) numeric technique adopted in aerospace and motors engineering to optimize forces and loads. Thanks to this method, the frame is reinforced only where necessary, thus MGF Pumps are the lighter pumps in the market, ensuring the higher loading capacity.

2. Pneumatic wheels improve the handling capacity in building sites, yards and over stairs against small wheels. Nowadays, the pneumatic wheels are a standard for best machines in the market.

3. Quick connectors and ergonomy: because time is money, every flushing shall be as fast as it can be, and without mistakes.

4. Out of the box high temperature compliance. All parts in MGF pumps are made to withstand high temperatures: pipes, pumps, filters, tank... Avoid spilling chemicals with cheap pumps inadequate for high temperature!

5. Mixing calculations ruler and level indicator. Thanks to this simple system you can mix the chemicals in the desired concentration and without calculations or account for the amount of liquid filled in the circuit.

SPECIFICATIONS:

- Weight: 21kg

- Dimensions: 1000x450x500mm

- Max Flow: 40L/min

- Max Pressure: 4 bar

- Pump Head: 40m

- Tank Capacity: 50L

- Connections: 3/4"

- Power Supply: 230 V ~ 50Hz

- Current: 2.6 A

- Power: 250W

- Sound Pressure: 70dBA

- Insulation Class: IP44.
