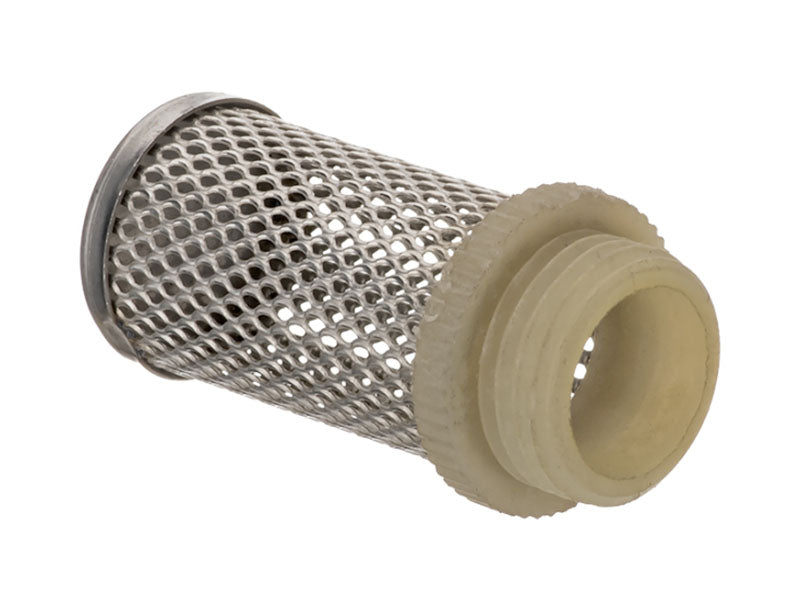

Replacement Foot Valve Strainers
| Size | SKU | Barcode | Price |
|---|---|---|---|
| 1/2" | 12FVS | 5391269751198 | |
| 3/4" | 34FVS | 5391269751204 | |
| 1" | 1FVS | 5391269751211 | |
| 1 1/4" | 114FVS | 5391269751228 | |
| 1 1/2" | 112FVS | 5391269751235 | |
| 2" | 2FVS | 5391269751242 |
DESCRIPTION:
A Non-Return Valve allows liquid to flow in one direction only. The valve is only opened when there is a flow of water, thus if the flow stops or if there is a back flow of water the valve closes. The spring check non return valve can be used vertically, horizontally or in oblique angles; an arrow is stamped on the body to indicate the direction of flow. Valves are available with both female BSP threaded connections ranging in size from 1/2" through to 2" and with Irish size compression connections ranging in size from 1/2" - 1" on either side. A stainless steel strainer is available separately which allows the non-return valve to be also used as a foot valve.
SPECIFICATIONS:
- Install Horizontally, Vertically or Oblique
- BSP thread sizes from 1/2" to 2" BSP
- BSP Threads in accordance with ISO228
- Irish Compression Sizes from 1/2" to 1"
- Compression Ends Conform to EN 1254-2
- Strainers available separately.
Replacement Foot Valve Strainers
