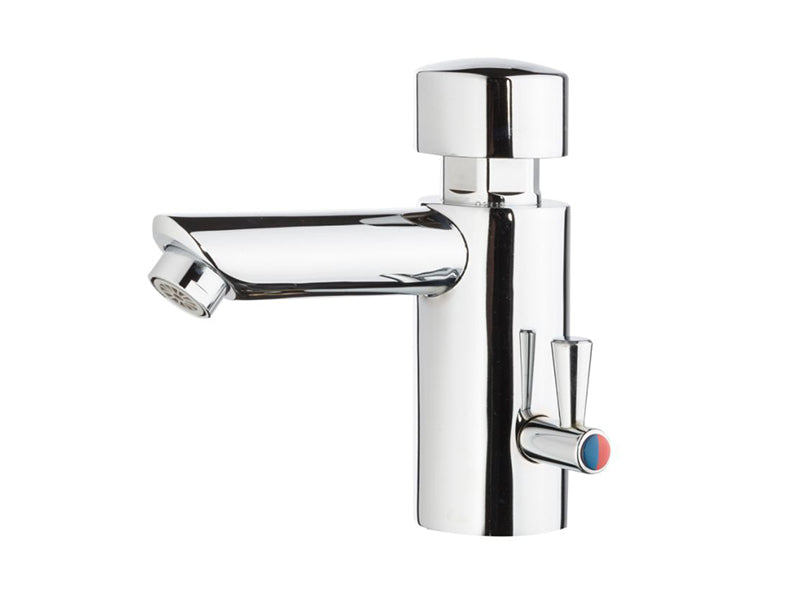

MCM Non Concussive Flow Rate Regulation Straight Basin Mixer

DESCRIPTION:

MCM Non Concussive Flow Rate Regulation Straight Basin Mixer.

Setting the Time Delay

For the cartridges with an adjustable open time, the time delay can be set from 0 to 25 seconds (± 10 seconds). The time delay can be adjusted by turning a small screw on the push button using the key supplied ( see diagram to the left). -Turning the screw to the right (clockwise) decreases the time delay. - Turning the screw to the left (anti-clockwise) increases the time delay.

Regulating the Flow Rate

To regulate the flow rate remove the cartridge from the body of the tap using a Nr. 24 spanner. Turn the plastic cup to the desired position from Fully open to Fully Closed (see diagram below). Use the chart (see right) to determine the required flow rate.
- Minimum Working Pressure 0.1 Bar
- Maximium Working Pressure 3 Bar
