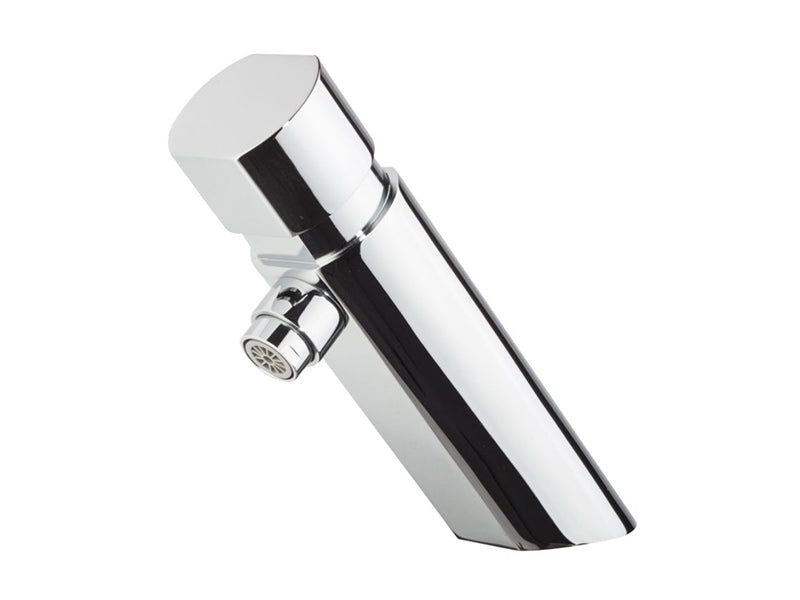

MCM Non Concussive Flow Rate Regulation Inclined Basin Tap

DESCRIPTION:

MCM Non Concussive Flow Rate Regulation Inclined Basin Tap (Push Button Op.).

Setting the Time Delay

For the cartridges with an adjustable open time, the time delay can be set from 0 to 25 seconds (± 10 seconds). The time delay can be adjusted by turning a small screw on the push button using the key supplied ( see diagram to the left). -Turning the screw to the right (clockwise) decreases the time delay. - Turning the screw to the left (anti-clockwise) increases the time delay.

Regulating the Flow Rate

To regulate the flow rate remove the cartridge from the body of the tap using a Nr. 24 spanner. Turn the plastic cup to the desired position from Fully open to Fully Closed (see diagram below). Use the chart (see right) to determine the required flow rate.
- Minimum Working Pressure 0.1 Bar
- Maximium Working Pressure 3 Bar
