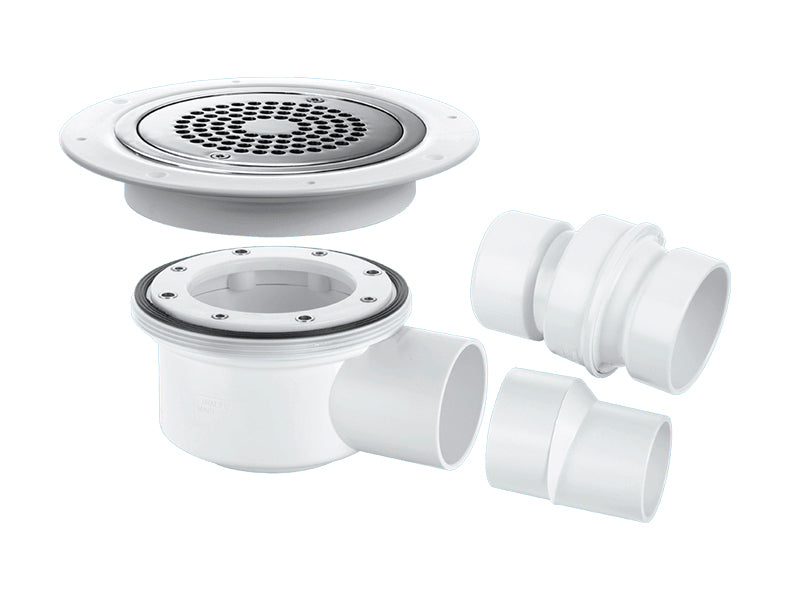

McAlpine Two Piece Traps for Sheet Flooring

DESCRIPTION:

Two piece 50mm water seal trapped shower gully with top access for easy cleaning. Can be used in all floors but they have been specifically designed for use with timber floors and floor formers and can be plumbed prior to the installation of the floor or former. They feature a unique swivel ball joint which facilitates the waste connection in the most difficult situations. Provided with a stainless steel cover plate.

SPECIFICATIONS:

- Available with Stainless Steel Cover Plate

- 50mm Water Seal

- 2" BS EN 1329-1:2020 Solvent Weld Horizontal Outlet

- Supplied with 2″ swivel outlet fitting and 2″ x 1½” socket reducer

- Manufactured in ABS to the highest quality

- Overall height 100mm

- For concrete and suspended timber floors.

McAlpine Two Piece Gully Traps for Sheet Flooring Technical Data Sheet
