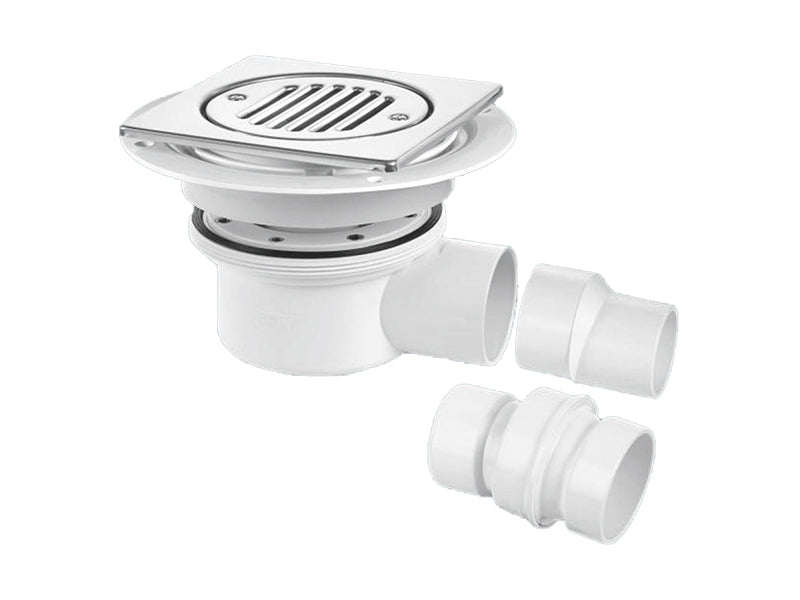

Mcalpine Two-Piece 50mm Water Seal Gully

DESCRIPTION:

Two-piece 50mm water seal trapped shower gully with top access for easy cleaning. Can be used in all floors but they have been specifically designed for use with timber floors and floor formers and can be plumbed prior to the installation of the floor or former.

They feature a unique swivel ball joint which facilitates the waste connection in the most difficult situations. Provided with a stainless steel cover plate.

Flow rates of 48 litres per minute exceed the minimum requirement of BS EN 1253-1:2015 and are variable dependent on the cover plate used. This is ideal for showers in domestic wet rooms, disabled and student accommodation, bathroom pods, retirement and care homes, hotels, hospitals and sport and leisure.

SPECIFICATIONS:

- Available with Polished Stainless Steel or White ABS grating

- 50mm Water Seal

- 2" BS EN 1329-1:2020 Solvent Weld Horizontal Outlet

- Tiled or stone floor gully suitable for concrete and suspended timber floors

- Supplied with 2" swivel outlet fitting and 2" x 1½” socket reducer

- Manufactured in ABS to the highest quality

- Overall height 100mm.

McAlpine Water Seal Vertical Gully Technical Data Sheet
