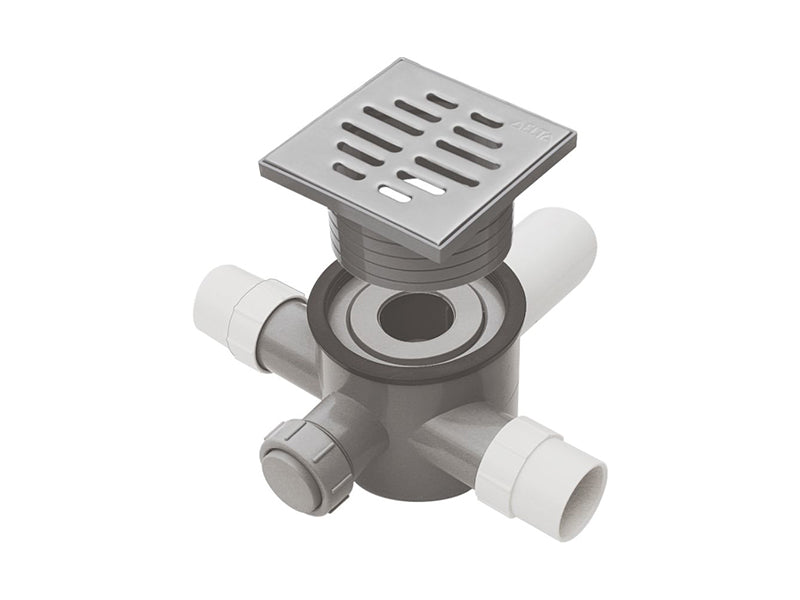

Floor Gully Trap and Waste Manifold for Tiled Floors

DESCRIPTION:

Floor Gully Trap for use with tiled floors and provides a multipoint waste pipe access as well as a surface drain gully for showers and washrooms.

As the water drains into the gully, from which ever inlet, it flows to the bottom and out through the 50mm connected pipe to the drain. The removable access pot creates a “trap” and prevents foul smells entering. If water flows into the trap at a faster rate than can be drained by the 50mm waste pipe, suggesting blockage, the Seal Float which moves up and down, rises within the pot and closes the gully drain section by being pushed into the Inner Seal Cap. This action prevents water and soap suds rising out of the gully grid.

SPECIFICATIONS:

- Body Material: ABS Plastic

- Gully Seal: PVC

- Inner Cap Seal: PVC

- Grid: Stainless Steel

- Waste Port Plugs: PP

- White Waste Fittings: PVC.

Floor Gully Trap and Waste Manifold Technical Data Sheet
