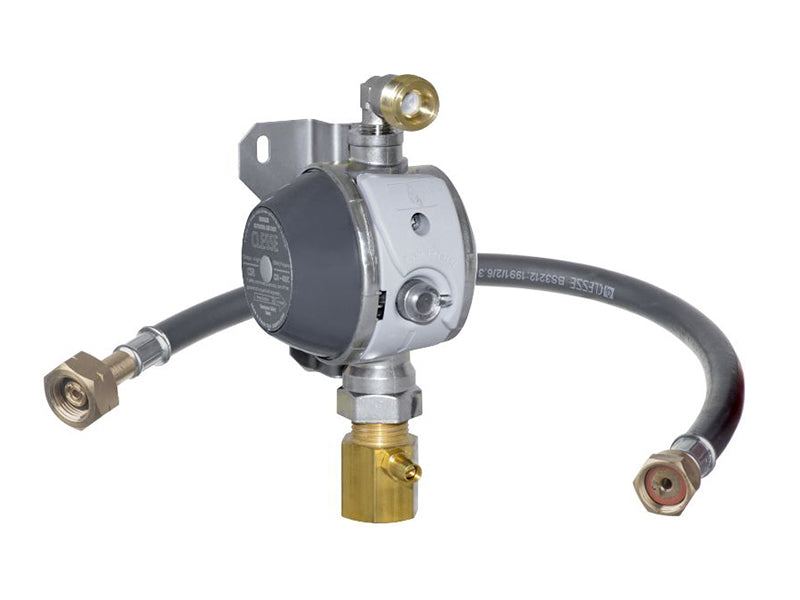

Clesse Single Cylinder Regulator Kit with Consumer Safety Reset & OPSO

DESCRIPTION:

Low pressure Wall Mounted regulators fitted with the latest Consumer Safety protection system required by standards to cover all fixed pipework installations. Ideal for all types of LPG cylinder applications. Single Cylinder kit supplied with an angled inlet connection and Testpoint on the outlet. Supplied on a universal bracket for wall mounting with a single pigtail for connection to a single Cylinder.

SPECIFICATIONS:

- Capacity 4kg/h – 55kW – (187,500Bth/hr)

- Cylinder Connection* IR Std Cylinder

- Operating Pressure 37mb (engineer adjustable)

- CSR OPSO Setting 125mb

- Outlet Connection 1/2" BSP Female Test Point

- Pressure Relief Valve (PRV) setting 75mb

- EN Standards BSEN 16129: 2013.
