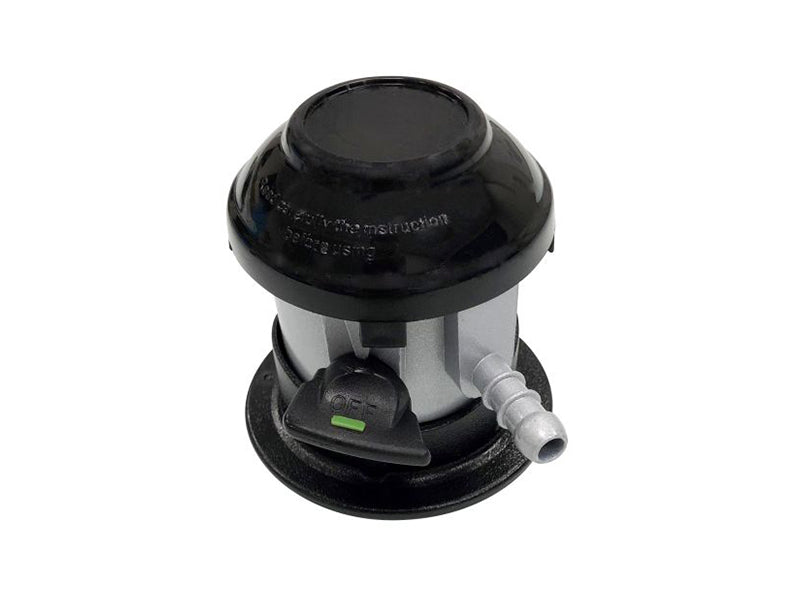

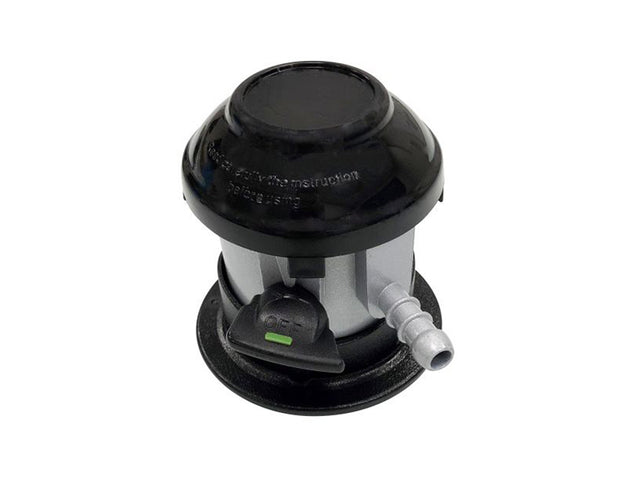

Jumbo Gas Regulator - For use with Butane Gas

DESCRIPTION:

The Jumbo regulator is designed to be used on cylinders supplying Butane gas to appliances requiring operating pressures of between 28 and 30 mbar. It is fitted to any cylinder fitted with a 35mm diameter automatic valve. The cylinder must always be kept in an upright position and, if used externally, must be kept under cover.

- Capacity: 2kg per hour

- Temperature limitations: 0 to 50 deg. C

- Includes protective rain cover!

- Warning: No attempt should be made to adjust the preset outlet pressure of the Regulator (29mbar).

Note. The marking of ΔP2 marked on the label (1) is the value of maximum downstream admissible pressure loss downstream and shall not be exceeded.

SPECIFICATIONS:

- Inlet pressure (p): 0.3-7.5 bar (Butane)

- Outlet pressure (pd): 29 mbar

- Outlet connection: 10mm x 23.5mm Long Hose Union Nozzle

- Guaranteed output (Mg): 2kg/h

- Type of gas: Butane.
