KFV Remote Acting Fire Valve - 1/4"
| Length | Temp. | SKU | Barcode | Price |
|---|---|---|---|
| 1.5m | 65 deg. C | KFV6515 | 5060232142041 | |
| 3m | 65 deg. C | KFV6530 | 5060232142058 | |
| 6m | 65 deg. C | KFV6560 | 5060232142065 | |
| 2m | 90 deg. C | KFV9020 | 5060232142089 | |
| 3m | 90 deg. C | KFV9030 | 5060232142096 | |
| 6m | 90 deg. C | KFV9060 | 5060232142102 |
DESCRIPTION:

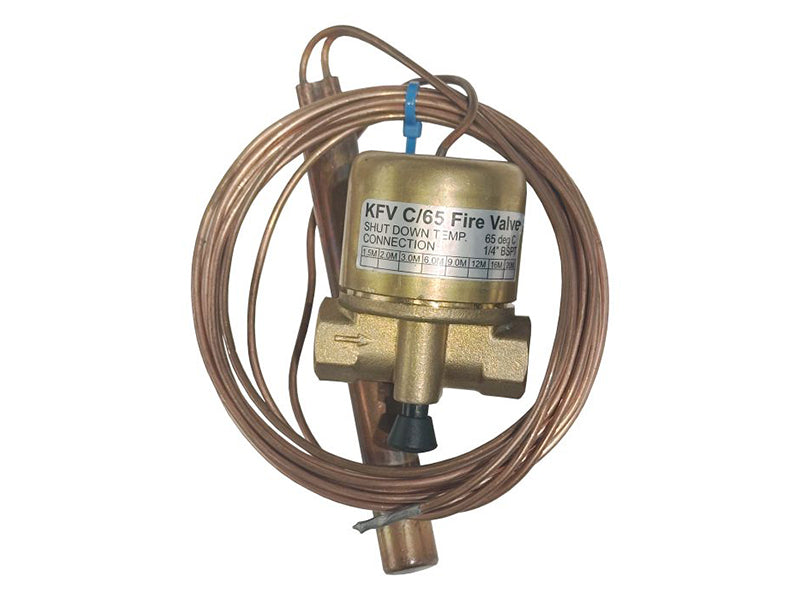

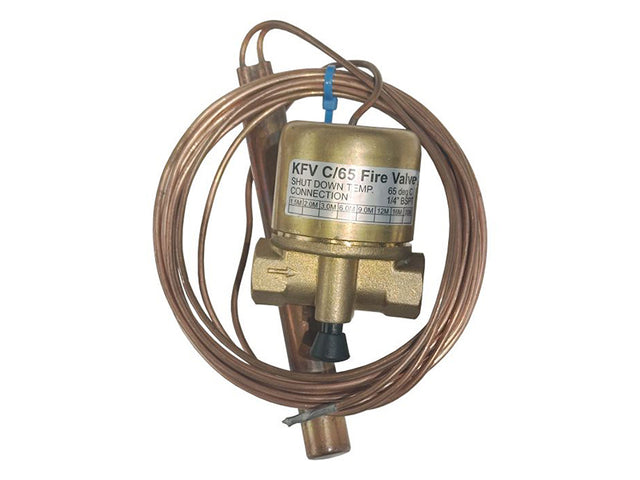

The KFV Remote Acting Fire Valve is a fast acting thermally operated valve with a spring loaded trip mechanism and sealed temperature sensing system. It consists of a bellows housed in a brass body, capillary tube and a sensor phial. The valve will close when the temperature at the sensor phial reaches the set value. It will remain in the shut-off condition until the appropriate action has been taken to restore normal operating conditions and the reset button has been pressed. It can also be closed manually by pulling the reset button.
Fail-safe protection for domestic and commercial oil boilers.
SPECIFICATIONS:
- Approved to OFTEC OFS E 101:2015
- Suitable to use with bio fuels
- Manual reset button
- Available in 65° or 90° shut off temperature settings
- Manual On/Off for appliance sevicing
- 1/4" BSP Parallel threads.
