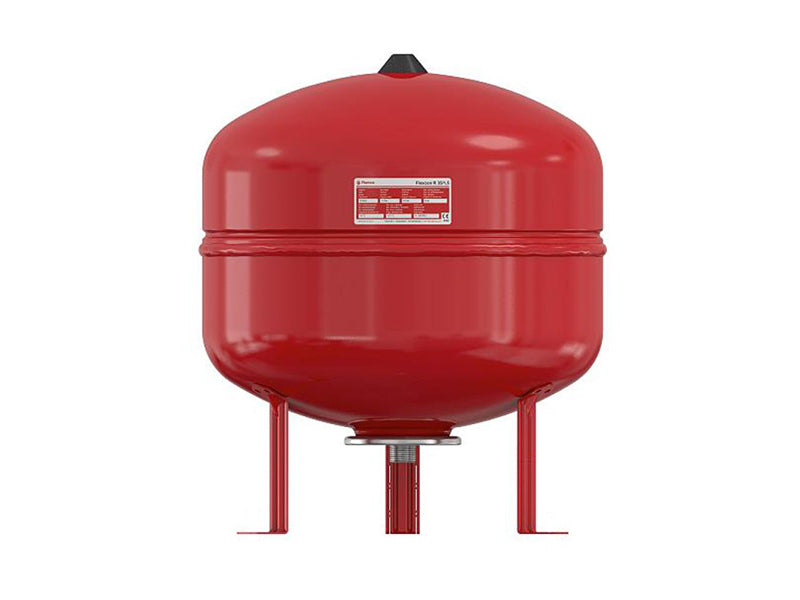

Flamco Contraflex Expansion Vessels - for heating applications

Capacity \| Dimensions	SKU	Barcode
100L \| 484x774mm	100LEV	8712874261037
150L \| 484x1014mm	150LEV	8712874161535
200L \| 484x1290mm	200LEV	8712874262133
250L \| 600x1138mm	250LEV	8712874162532
300L \| 600x1315mm	300LEV	8712874263031
400L \| 790x1160mm	400LEV	8712874264137
500L \| 790x1310mm	500LEV	8712874265233
600L \| 790x1518mm	600LEV	8712874171626
800L \| 790x1868mm	800LEV	8712874171817
1000L \| 790x2248mm	1000LEV	8712874171909

DESCRIPTION:

Flamco Contraflex Expansion Vessels - for heating applications.

SPECIFICATIONS:

- Vessels in accordance with EN13831

- Maximum temperature diaphragm: 70 deg. C

- Suitable for addition of glycol-based anti-freeze up to 50%

- Deep drawn steel vessel halves with zinc plated steel clench ring

- In accordance with Pressure Equipment Directive 2014/68/EU

- Red (RAL 3002) or white (RAL 9010) epoxy powder coating.

- Maximum working pressure: 6.0 bar

- Connection: 1"

- All welded construction.
