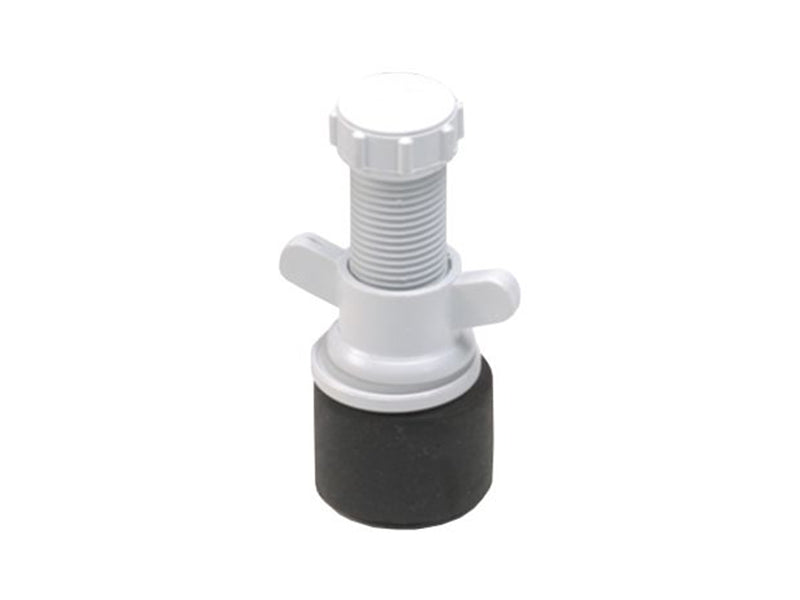

Nylon Drain Test Plugs

Size | Operating Size SKU Barcode Price
1/2" | 13- 17mm BP1979 5391269778874
3/4" | 20 - 26mm BP2555 5391269778881
1" | 25 - 32mm BP2556 5391269778892
1 1/4" | 34 - 43mm BP1978 5391269778904

DESCRIPTION:

Nylon Drain Test Plugs.

SPECIFICATIONS:

- Operating Pressure: 30 psi

- BSP Outlet Size: Solid

Operating Instructions

  1. Select the correct size of plug, to suit the internal diameter of the pipe
  2. Remove any grease or foreign material from installation point
  3. Ensure no dirt is trapped between seal of plug and plates
  4. Ensure plug is inserted square to pipe wall
  5. Ensure wing nut and sealing cap are tight.
