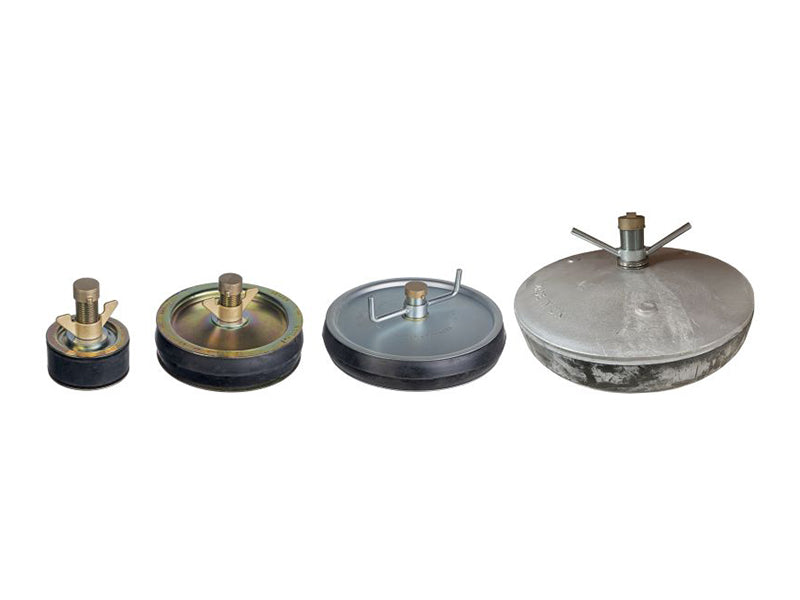

Brass Drain Test Plugs

Size | Operating Size SKU Barcode Price
1 1/2" | 36 - 48mm BP2558 5016729027353
2" | 49 - 60mm BP2559 5016729000080
2 1/2" | 61 - 75mm BP2560 5391269778911
3" | 73 - 85mm BP2561 5391269688685
4" | 94 - 110mm BP2416 5391269688692
4 1/2" | 110 - 120mm BP1467 5016729025694
5" | 121- 138mm BP2563 5016729030339
6" | 146 - 163mm BP2417 5391269688708
7" | 170 - 195mm BP2564 5016729000127
8" | 191 - 211mm BP2565 5391269688715
9" | 216 - 235mm BP2420 5391269688722
10" | 244 - 260mm BP2566 5391269778928
12" | 296 - 314mm BP2567 5391269688739
14" | 340 - 375mm BP2569 5391269778935
15" | 365 - 400mm BP2570 5391269688746
16" | 390 - 425mm BP2571 5391269688753
18" | 440 - 475mm BP3193 5391269688760
21" | 520 - 555mm BP3721 5391269778942
24" | 590 - 630mm BP3722 5391269778959

DESCRIPTION:

Brass Drain Test Plugs.

SPECIFICATIONS:

- Operating Pressure: 7 psi (for sizes 1 1/2"-12") and 5 psi (for sizes 14"- 24")

- BSP Outlet Size: 1/2" (for sizes 1 1/2"-6"), 1" (for sizes 7"-8") and 2" (for sizes 21" & 24")

Operating Instructions

  1. Select the correct size of plug, to suit the internal diameter of the pipe
  2. Remove any grease or foreign material from installation point
  3. Ensure no dirt is trapped between seal of plug and plates
  4. Ensure plug is inserted square to pipe wall
  5. Ensure wing nut and sealing cap are tight.
