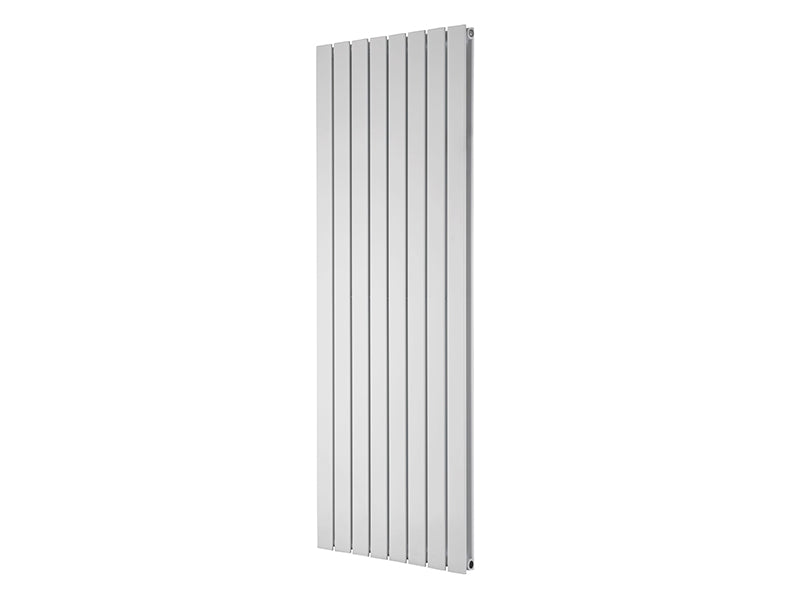

Vico Vertical Double Panel Radiators - 1800mm Tall

Width \| Finish \| BTU \| Watts	SKU	Barcode
450mm \| White \| 6305 \| 1847	DPV4518W	5391269776832
450mm \| Anthracite \| 6305 \| 1847	DPV4518A	5391269776849
600mm \| White \| 7831 \| 2294	DPV6018W	5391269779895
600mm \| Anthracite \| 7831 \| 2294	DPV6018A	5391269779901

DESCRIPTION:

Designer steel radiators with modern and elegant lines. Radiators are Conforms to ENA442, CE Approved.

SPECIFICATIONS:

- Material: Mild Steel

- Wall to Pipe Centres: 65mm

- Projection from wall: 100mm

- Number of tubes: 6+6 (450mm model) and 8+8 (600mm model)

- Max. Operating Pressure: 10 bar

- Max. Operating Temperature: 80 deg. C

- Flat Bar Profile Dimension: 68 x 12mm

- Inlet/Outlet Connection Size: 1/2" BSP.
