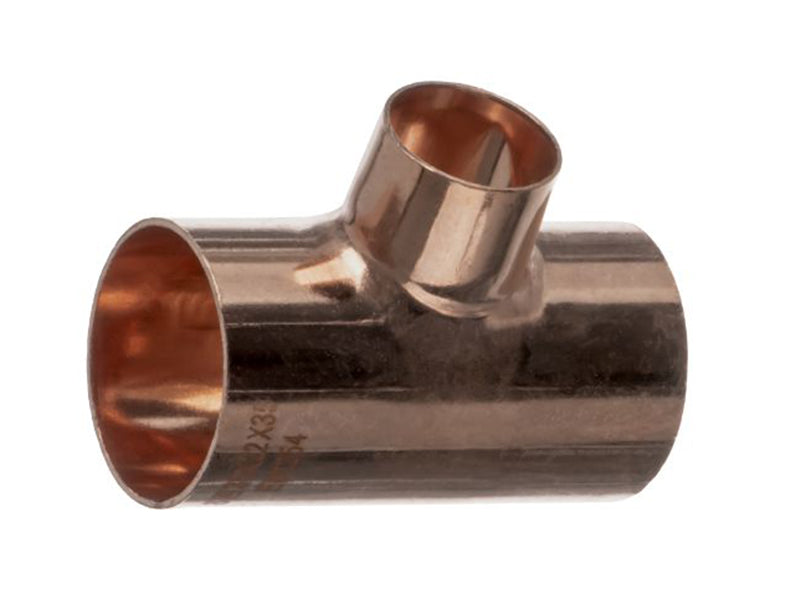

Copper End Feed Unequal Tees Reduced Branch

Size	SKU	Barcode
22 x 22 x 15mm	E222215	5391269541546
28 x 28x 15mm	E282815	5391269541652
28 x 28 x 22mm	E282822	5391269541669
35 x 35 x 15mm	E353515	5391269208197
35 x 35 x 22mm	E353522	5391269208180
35 x 35 x 28mm	E353528	5391269208173
42 x 42 x 15mm	E424215	5391269208166
42 x 42 x 22mm	E424222	5391269208159
42 x 42 x 28mm	E424228	5391269208142
42 x 42 x 35mm	E424235	5391269208135
54 x 54 x 15mm	E545415	5391269208128
54 x 54 x 22mm	E545422	5391269208111
54 x 54 x 28mm	E545428	5391269208401
54 x 54 x 35mm	E545435	5391269208395
54 x 54 x 42mm	E545442	5391269208388
67 x 67 x 28mm	EF256728	5391269605903
67 x 67 x 35mm	EF256735	5391269605910
67 x 67 x 42mm	EF256742	5391269605927
67 x 67 x 54mm	EF256754	5391269605934
76 x 76 x 28mm	EF257628	5391269605958
76 x 76 x 35mm	EF257635	5391269605965
76 x 76 x 42mm	EF257642	5391269605972
76 x 76 x 54mm	EF257654	5391269605989
76 x 76 x 67mm	EF257667	5391269605996
108 x 108 x 35mm	EF2510835	5391269605781
108 x 108 x 42mm	EF2510842	5391269605798
108 x 108 x 54mm	EF2510854	5391269605804
108 x 108 x 67mm	EF2510867	5391269605811
108 x 108 x 76mm	EF2510876	5391269605828
159 x 159 x 76mm	EF2515976	5391269605866
159 x 159 x 108mm	EF25159108	5391269605835

DESCRIPTION:

End Feed Fittings, manufactured in Copper and are a fast, reliable and economic method of joining BS EN 1057 copper tube. End Feed Fittings connect to copper tube through the process of capillary action with solder forming an easy, effective joint between the fitting and the tube.

They are lightweight for easy handling and lend themselves well to confined environments due to their compact sizing.

SPECIFICATIONS:

- Full Bore Fitting

- Available in sizes from 15mm to 159mm

- Copper fittings manufactured to EN1254-1

- Designed to connected to BS EN 1057 tube

- WRAS Approved.

Copper End Feed Fittings Technical Data Sheet
