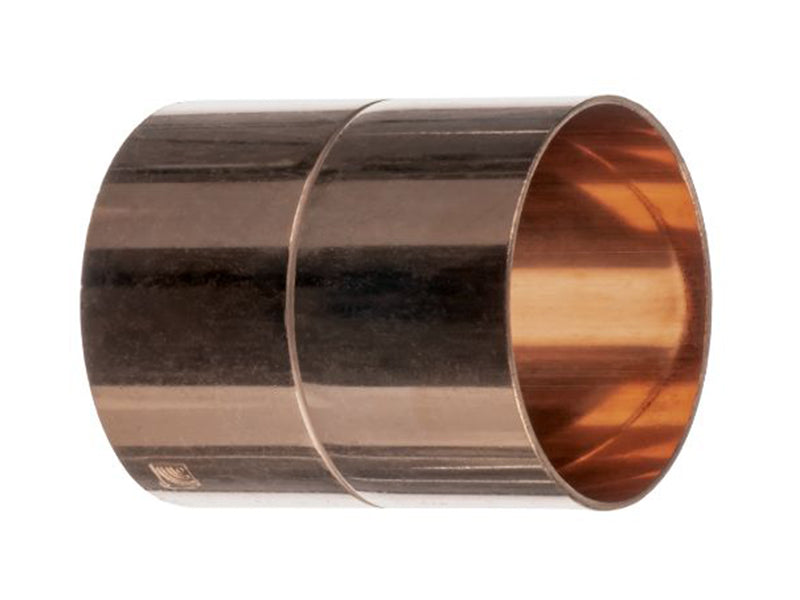

Copper End Feed Straight Coupling EF1

Size	SKU	Barcode
15mm x 15mm	EF115	5391269541683
22mm x 22mm	EF12	5391269512485
28mm x 28mm	EF128	5391269541744
35mm x 35mm	EF135	5391269208258
42mm x 42mm	EF142	5391269208241
54mm x 54mm	EF154	5391269208234
67mm x 67mm	EF167	5391269605637
76mm x 76mm	EF176	5391269605644
108mm x 108mm	EF1108	5391269605583
159mm x 159mm	EF1159	5391269605590

DESCRIPTION:

End Feed Fittings, manufactured in Copper and are a fast, reliable and economic method of joining BS EN 1057 copper tube. End Feed Fittings connect to copper tube through the process of capillary action with solder forming an easy, effective joint between the fitting and the tube.

They are lightweight for easy handling and lend themselves well to confined environments due to their compact sizing.

SPECIFICATIONS:

- Full Bore Fitting

- Available in sizes from 15mm to 159mm

- Copper fittings manufactured to EN1254-1

- Designed to connected to BS EN 1057 tube

- WRAS Approved.

Copper End Feed Fittings Technical Data Sheet
