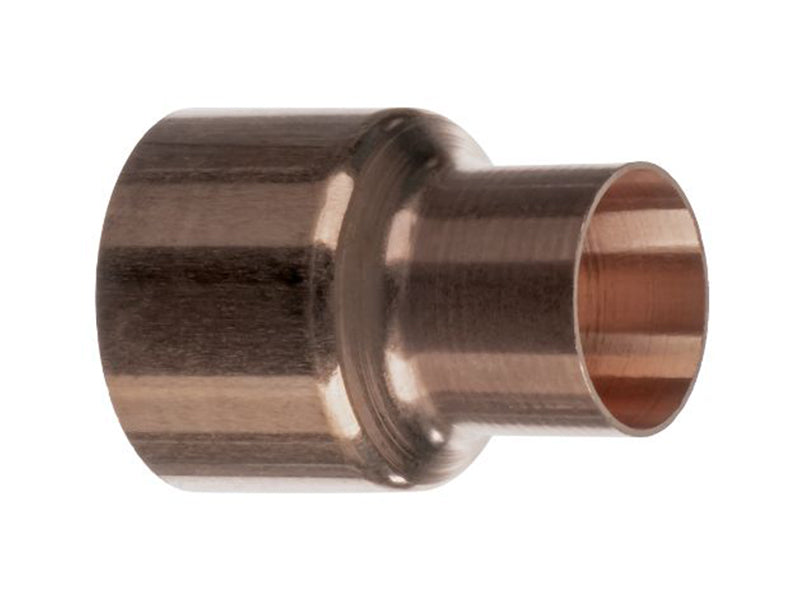

Copper End Feed Fitting Reducers EF6

Size	SKU	Barcode
22 x 15mm	EF62215	5391269542086
28 x 15mm	EF62815	5391269542109
28 x 22mm	EF62822	5391269542116
35 x 15mm	EF63515	5391269208555
35 x 22mm	EF63522	5391269208548
35 x 28mm	EF63528	5391269208531
42 x 15mm	EF64215	5391269208524
42 x 22mm	EF64222	5391269208517
42 x 28mm	EF64228	5391269208500
42 x 35mm	EF64235	5391269208494
54 x 15mm	EF65415	5391269606269
54 x 22mm	EF65422	5391269606276
54 x 28mm	EF65428	5391269208487
54 x 35mm	EF65435	5391269208470
54 x 42mm	EF65442	5391269208463
67 x 28mm	EF66728	5391269606283
67 x 35mm	EF66735	5391269606290
67 x 42mm	EF66742	5391269606306
67 x 54mm	EF66754	5391269606313
76 x 35mm	EF67635	5391269606337
76 x 42mm	EF67642	5391269606344
76 x 54mm	EF67654	5391269606351
76 x 67mm	EF67667	5391269606368
108 x 42mm	EF610842	5391269606115
108 x 54mm	EF610854	5391269606122
108 x 67mm	EF610867	5391269606139
108 x 76mm	EF610876	5391269606146
159 x 76mm	EF615976	5391269606238
159 x 108mm	EF6159108	5391269606177

DESCRIPTION:

End Feed Fittings, manufactured in Copper and are a fast, reliable and economic method of joining BS EN 1057 copper tube. End Feed Fittings connect to copper tube through the process of capillary action with solder forming an easy, effective joint between the fitting and the tube.

They are lightweight for easy handling and lend themselves well to confined environments due to their compact sizing.

SPECIFICATIONS:

- Full Bore Fitting

- Available in sizes from 15mm to 159mm

- Copper fittings manufactured to EN1254-1

- Designed to connected to BS EN 1057 tube

- WRAS Approved.

Copper End Feed Fittings Technical Data Sheet
