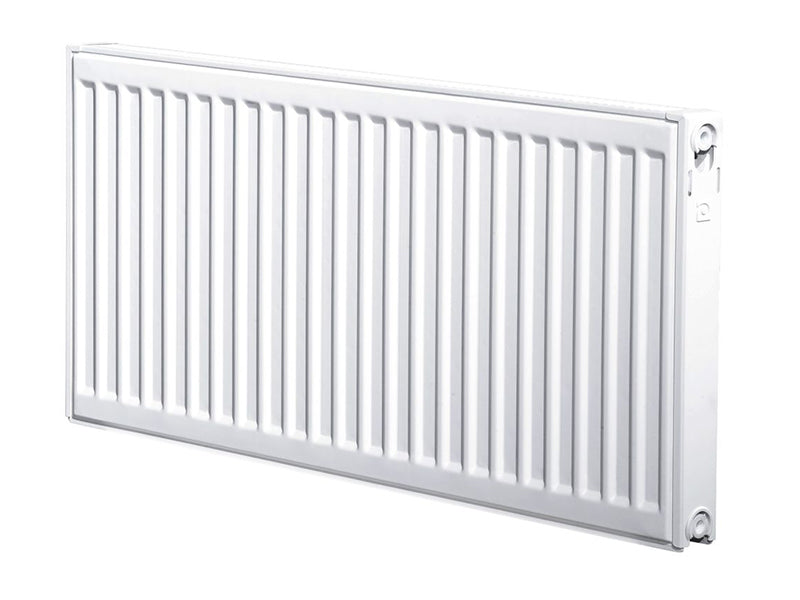

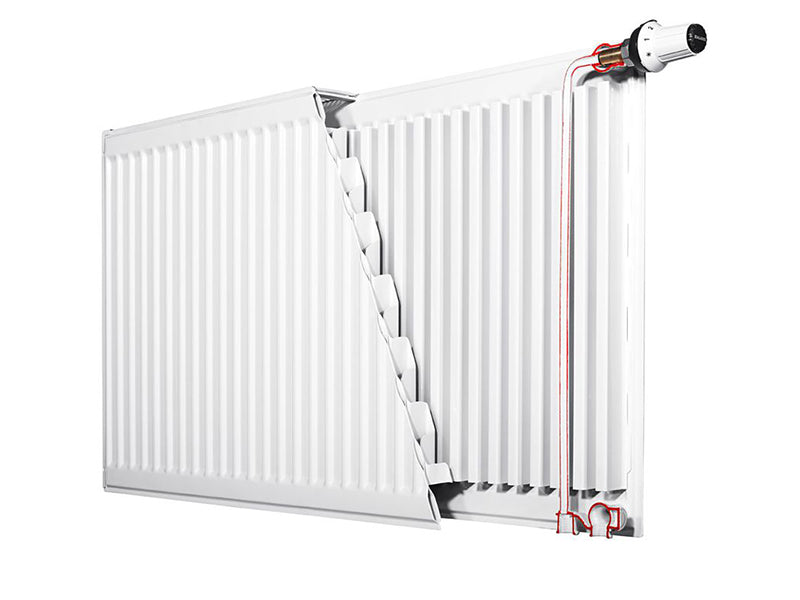

Firefly Compact Single Panel Radiators

DESCRIPTION:

Firefly radiators are manufactured to all international standards including BS EN 442 and the designs as depicted here incorporate the following features: Top grills and side covers included at no extra cost. Chrome air vents, end plugs incorporating rubber O rings, and wall brackets are included in the packaging. Low water content combined with modern welding technology and maximum metal gauge material creates a highly efficient product with the capability of a fast heat up time. All radiators are tested to 13 bar which exceeds the maximum operating pressure of 10 bar. Anti-corrosion treatment is applied to the external surfaces of the radiators during the manufacturing process and prior to primer paint application. Finally a hard baked powder paint coating is applied which ensures a long lasting finish.

Guarantee Radiators carry a 10 year no quibble guarantee. This is conditional that standard installation procedures are adhered to including the use of a propriety brand of corrosion inhibitor being introduced into the system in which the radiators are installed. Connections Top and bottom opposite end connections are standard. Emission Characteristics Heat outputs conform to BS EN442 certification and are detailed in the tables below. Heat outputs are based on a delta T of 50ºC, mean water temperature of 70ºC and room temperature of 20ºC.

SPECIFICATIONS:

- Test pressure: 13 bars

- Max working pressure: 10 bars

- Max Water Temperature: 95 deg. C

- Warranty: 10 years

- Paint Finish: RAL9016

- Number of connections: 4 x G 1/2
