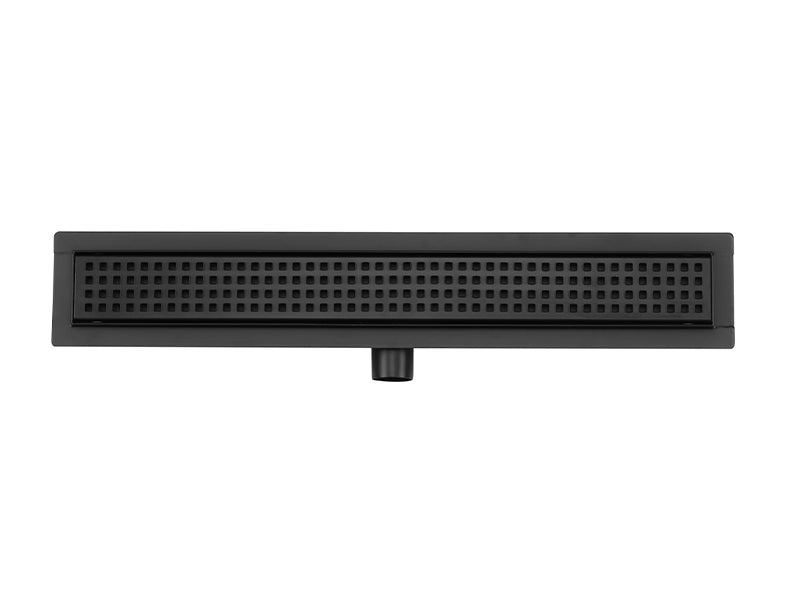

Franklin Matt Black Trapped Channel Wet Room Floor Gully with Perforated Cover

DESCRIPTION:

FRANKLIN Shower and Wet Room Channel Drains are manufactured from Grade 304 stainless steel and feature integral easy to access and clean water traps. The Channel and Tile versions are available with a choice of 2 different covers – reversible and grid patterns. The reversible cover is suitable for use with ceramic tiles on one side and as a plain stainless steel cover on the other (see illustration).

All outlets are 40mm horizontal and sturdy leveling feet are included with each kit. They provide for space saving, neat and convenient solutions to waste water evacuation in domestic and light commercial applications. They comply with the requirements of EN1253-1:2015 (when tested in conjunction with a separate water seal of 50mm depth).

SPECIFICATIONS:

- Channel Wet Room Floor Gully

- Available with perforated and reversible cover

- Available in S/Steel Brushed Brass and Matt Black Finish

- 40mm horizontal outlet

- Adjustable between 85mm and 125mm

- Complies with the requirements of EN1253.

Franklin Trapped Channel Wet Room Floor Gully Technical Data Sheet
