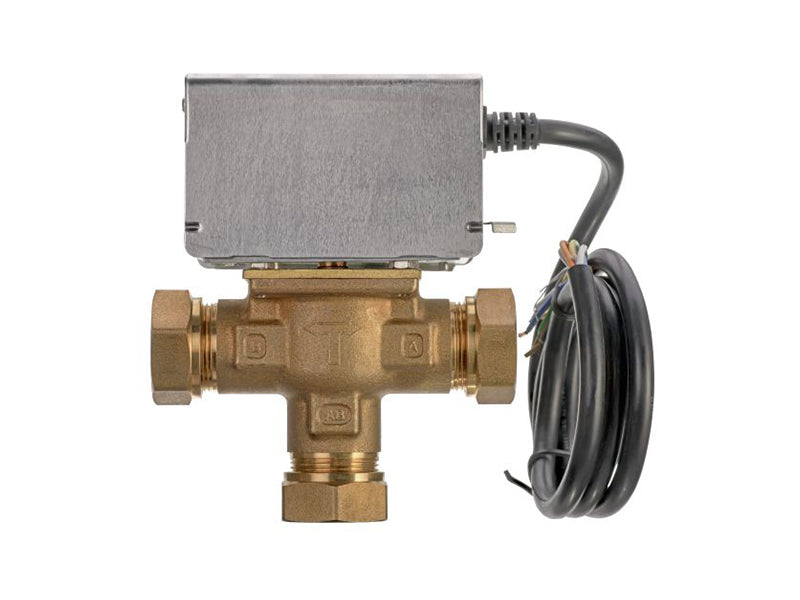

Motorised 3 Port Diverter Valves

DESCRIPTION:

Motorised 3 Port Diverter Valves. This Diverter Valve only allows flow to one zone at any time. The ZV valve range has been designed to control the flow of water in a small bore domestic central heating system where both radiator and hot water cylinder circulation are pumped. It is typically suited for systems up to 90,000 Btu/h (26 KW).

SPECIFICATIONS:

- Power consumption: 6W

- Lead supplied:1M, 5 core

- Auxiliary micro switch

- Removable Head

- Voltage: 230V 50Hz

- Operating temperature range: +5 to +88 deg. C

- Maximum ambient temperature: +52 deg. C

- Pipe fitting sizes: 22mm and 28mm compression fitting.

 Motorised 3 Port Diverter Valves Technical Data Sheet
