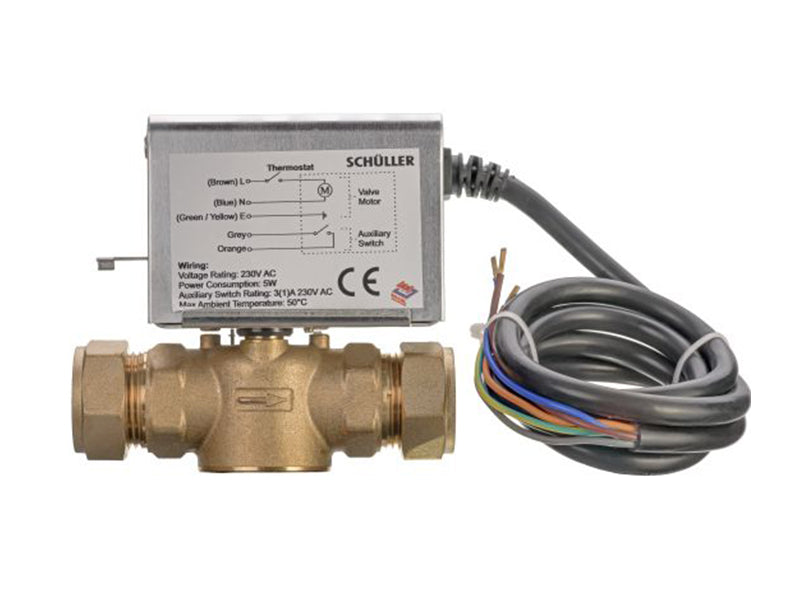

Motorised 2 Port Zone Valve

DESCRIPTION:

Motorised 2 Port Zone Valve. The ZV valve range has been designed to control the flow of water in iron and copper pipe systems. Although specifically designed for small bore central heating systems, the valves can be used in commercial and industrial applications.

SPECIFICATIONS:

- Power consumption: 6W

- Lead supplied:1M, 5 core

- Auxiliary micro switch

- Removable Head

- Voltage: 230V 50Hz

- Operating temperature range: +5 to +88 deg. C

- Maximum ambient temperature: +52 deg. C

- Pipe fitting sizes: 22mm and 28mm compression fitting.

 Motorised 2 Port Zone Valve Technical Data Sheet
