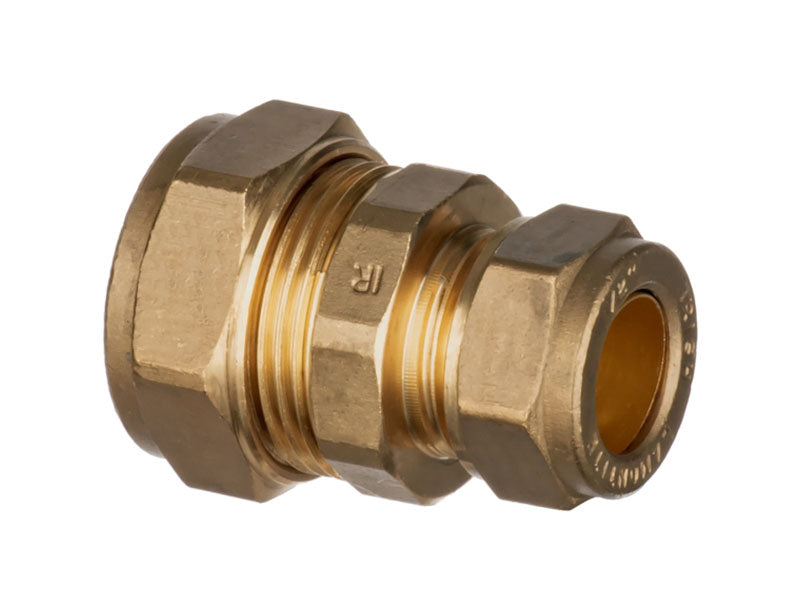

Brass Compression Metric Reducing Straight Coupling 610
| Size | SKU | Barcode | Price |
|---|---|---|---|
| 8mm x 6mm | 8X610 | 5391269204816 | |
| 10mm x 8mm | 10X810 | 5391269543168 | |
| 15mm x 8mm | 15X810 | 5391269204854 | |
| 15mm x 10mm | 15X1010 | 5391269204861 | |
| *1/2" x 10mm | 121010 | 5391269797547 | |
| *1/2" x 12mm | 121210 | 5391269716388 | |
| 10mm x 12mm | 101210 | 5391269732920 | |
| *15mm x 1/2" | 3101512 | 5391269692804 | |
| *22mm x 3/4"mm | 3102234 | 5391269706532 |
DESCRIPTION:
Brass compression fittings are available in metric sizes from 6mm through to 54mm. Compression fittings are manufactured according to the requirements of IS/EN 1254-2. They are suitable for a variety of applications including hot and cold water services, central heating installations, refrigeration, compressed air and general engineering applications. A variety of tubes may be used with compression fittings including copper tube, light and heavy gauge LDPE pipe and PEX pipe provided they comply with Irish & Metric sizes and the correct inserts are used. Brass Compression metric fittings should not be used for below ground applications.
*Metric to Imperial Sizes
SPECIFICATIONS:
- Full bore
- Metric Sizes from 6mm to 54mm
- Compression Ends Conform to EN 1254-2
- BSP Threads in accordance with ISO228
- WRAS Approved.
