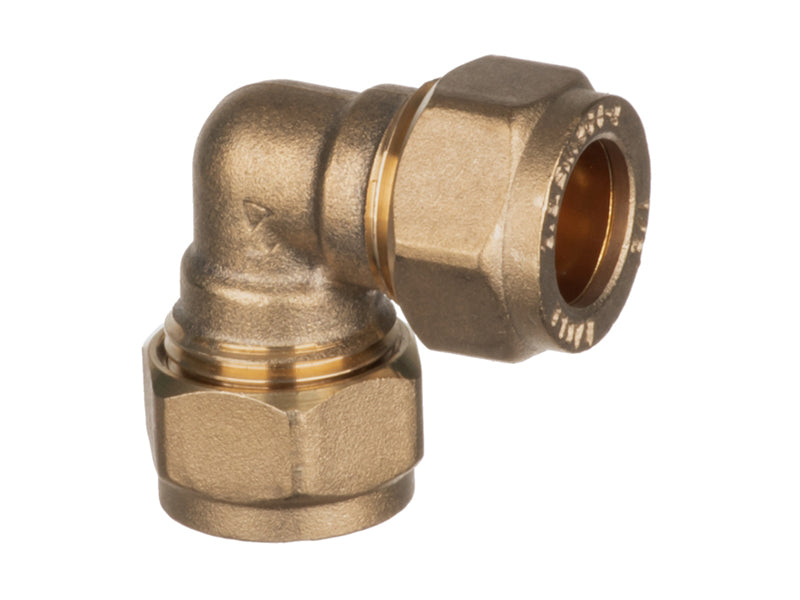

Brass Compression Metric Elbow 615
| Size | SKU | Barcode | Price |
|---|---|---|---|
| 6mm x 6mm | 615 | 5391269540044 | |
| 8mm x 8mm | 815 | 5391269204212 | |
| 10mm x 10mm | 1015 | 5391269204229 | |
| 12mm x 12mm | 1215 | 5391269706518 | |
| 15mm x 15mm | 1515 | 5391269537013 | |
| 22mm x 22mm | 2215 | 5391269204564 | |
| 22mm x 15mm | 221515 | 5391269776535 | |
| 28mm x 28mm | 2815 | 5391269204571 | |
| 35mm x 35mm | 3515 | 5391269539215 | |
| 42mm x 42mm | 4215 | 5391269539505 | |
| 54mm x 54mm | 5415 | 5391269539796 | |
| *15mm x 1/2" | 3151512 | 5391269706549 | |
| *22mm x 3.4" | 3152234 | 5391269706556 |
DESCRIPTION:
Brass compression fittings are available in metric sizes from 6mm through to 54mm. Compression fittings are manufactured according to the requirements of IS/EN 1254-2. They are suitable for a variety of applications including hot and cold water services, central heating installations, refrigeration, compressed air and general engineering applications. A variety of tubes may be used with compression fittings including copper tube, light and heavy gauge LDPE pipe and PEX pipe provided they comply with Irish & Metric sizes and the correct inserts are used. Brass Compression metric fittings should not be used for below ground applications.
*Metric to Imperial Sizes
SPECIFICATIONS:
- Full bore
- Metric Sizes from 6mm to 54mm
- Compression Ends Conform to EN 1254-2
- BSP Threads in accordance with ISO228
- WRAS Approved.
