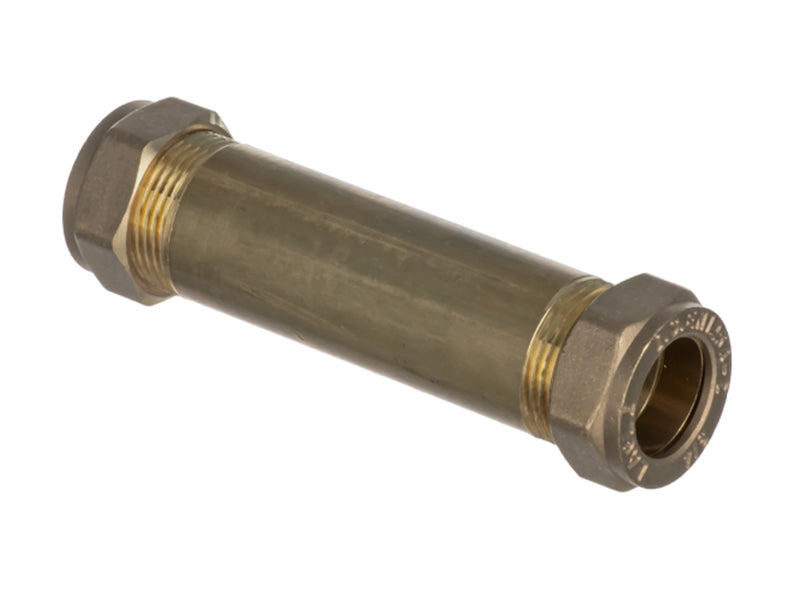

Brass Compression Repair Coupling 310L
| Size | SKU | Barcode | Price |
|---|---|---|---|
| 1/2" x 1/2" | 31012L | 5391269615995 | |
| 3/4" x 3/4" | 31034L | 5391269616008 |
DESCRIPTION:
Brass compression fittings are available in Irish sizes from 1/2" through to 2". Compression fittings are manufactured according to the requirements of IS/EN 1254-2. They are suitable for a variety of applications including hot and cold water services, central heating installations, refrigeration, compressed air and general engineering applications. A variety of tubes may be used with compression fittings including copper tube, light and heavy gauge LDPE pipe and PEX pipe provided they comply with Irish & Metric sizes and the correct inserts are used. Brass Compression fitting should not be used for below ground applications.
Repair Coupling 310L Features:
1 Trace leak
2 Drain & cut out leak section
3 Slide Coupling over one end, (pipe may have to be distorted)
4 Align olives, move Coupling over gap and tighten both nuts.
SPECIFICATIONS:
- Full bore
- Irish Sizes from 1/2" to 2"
- Compression Ends Conform to EN 1254-2
- BSP threads sizes from 1/2" to 2" BSP
- BSP Threads in accordance with ISO228
- WRAS Approved.
Brass Compression Repair Coupling 310L
